High-Frequency PCB Layout & Fabrication

End-to-end PCB design for RF, microwave, and mm-wave systems—from schematic to fabrication-ready layouts.

Our capabilities include multi-material stackups, impedance-controlled routing, and designs up to 10+ GHz. Whether its power amplifiers, filters, or duplexers, we deliver precision-tuned layouts for high-frequency performance.

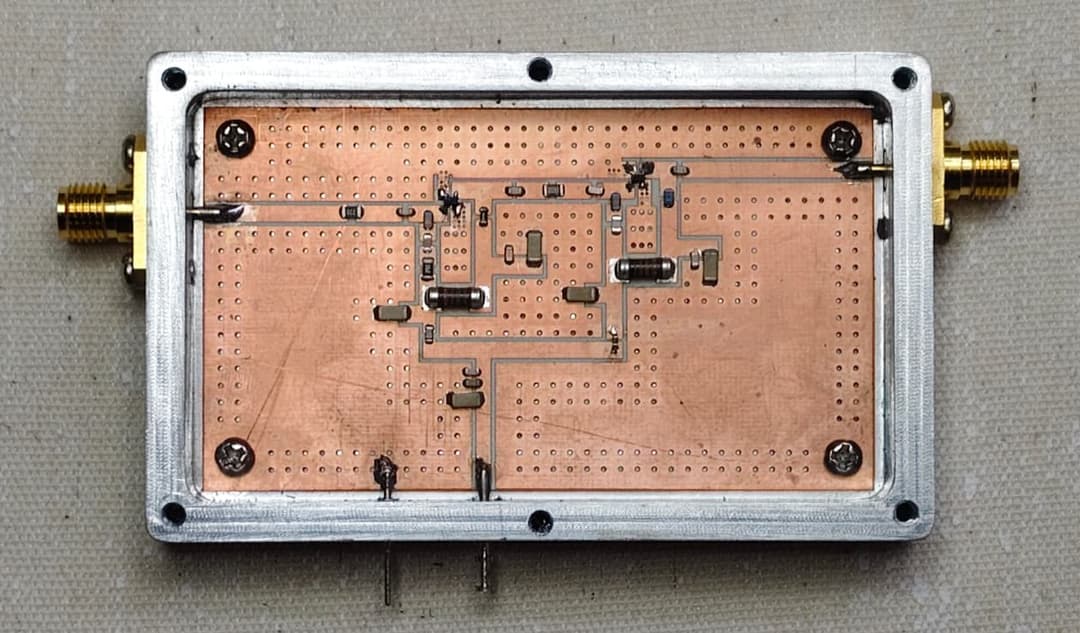

Example: 5W, L-Band Power Amplifier

Layers:

2 layers – Rogers 6006
